Recommended for kitchens catering up to 40 cups of boiling, 12 litres of hot & 30 cups of chilled water at any given time. Ideal for locations without hot water, the unit will produce 12L of hot water per hour, dispensed through an existing hot/cold mixer tap.
| PRODUCT CODE: | EBT 40/12/30 |
| PRICE: | $3,913.04 (excl GST) |

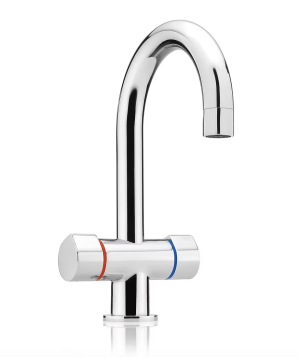

Twin Lever Tap
The twin lever tap dispensers both boiling and chilled water from the same faucet. This vented push through mechanism, requires no pumps, switches or solenoids.
Duo Boil/Hot Unit
Our units have no moving parts, instead we utilise water pressure with a venturi to deliver a reliable source of boiling water. The Duo offers the added bonus of a hot water supply connected through the existing mixer tap.
Arctic Chiller
Our chiller produces 30 cups delivery of chilled and filtered water. These efficient designs are compact for use under bench but quiet in operation.
Filter
We include a filter kit with every unit to ensure the most pure and great tasting water supply. Adding a filter extends the service period and the life of the unit.
| Product Code |
Boil Unit | Chiller | Power Supply Requirements |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
| kW | Number of cups at once |
Cups Recovery per hour |
Litres Capacity |
Dimensions (mm) | Number of cups at once |
Litres Capacity |
Power/ Volts |
Dimensions (mm) | ||
| EBT 40/12/30 | 2.4 | 40 | 120 | 5 | 480H 248W 305D | 30 | 6 | 240, 50Hz | 290H 210W 410D | 2 x 3-pin power socket |
| EBT 80/20/30 | 2.4 | 80 | 120 | 10 | 635H 300W 300D | 30 | 6 | 240, 50Hz | 290H 210W 410D | 2 x 3-pin power socket |
Note: Recommended staff numbers are based upon pouring 200 ml cups without interruption.
| Box 1 | Box 2 |
|
|
PRODUCT CODE: EB WP30
The Twin Lever Tap dispenses both boiling and chilled water from the same tap. Read more...
PRODUCT CODE: UBFKI 10B
Inline underbench kit with EBOKDF - 1 micron Omnipure GAC Carbon inline cartridge. Read more...
PRODUCT CODE: EB 300
Connects to PLV on Ecoboil under bench combo units. Read more...
PRODUCT CODE: EB 400
For connection points on Ecoboil under bench chiller units and under bench filters. Read more...
PRODUCT CODE: EB 500
John Guest 1/4" water filter tube, high pressure food grade. Read more...
PRODUCT CODE: EB 809
Heavy duty electronic power timer, can be programmed for required use 24/7. Read more...
PRODUCT CODE: EB 801
The IntelliSwitch saves you money by switching the power off outside business hours. Read more...
Our warranty starts from the date of installation; five years on the storage body, one year for parts/tapware and labour.
