Recommended for kitchens catering up to 80 cups of boiling, 20 litres of hot & 30 cups of chilled water at any given time. Ideal for locations without hot water, the unit will produce 20L of hot water per hour, dispensed through an exisiting hot/cold mixer tap.
Trio Under Bench Boil/Hot & Chill Units 80/20/30
|PRODUCT CODE:||EBT 80/20/30|
|PRICE:||$3,303.48 (excl GST)|

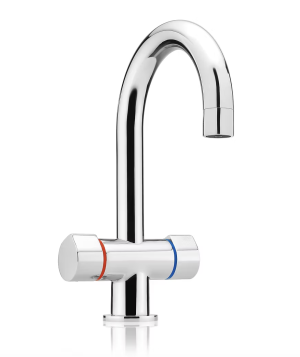

Twin Lever Tap
The twin lever tap dispensers both boiling and chilled water from the same faucet. This vented push through mechanism, requires no pumps, switches or solenoids.
Duo Boil/Hot Unit
Our units have no moving parts, instead we utilise water pressure with a venturi to deliver a reliable source of boiling water. The Duo offers the added bonus of a hot water supply connected through the existing mixer tap.
Our chiller produces 30 cups delivery of chilled and filtered water. These efficient designs are compact for use under bench but quiet in operation.
We include a filter kit with every unit to ensure the most pure and great tasting water supply. Adding a filter extends the service period and the life of the unit.
|Boil Unit||Chiller||Power Supply
cups at once
|Dimensions (mm)||Number of
cups at once
|EBT 40/12/30||2.4||40||120||5.0||480H 248W 305D||30||6.0||240, 50Hz||290H 210W 410D||2 x 3-pin power socket|
|EBT 80/20/30||2.4||80||120||10.0||635H 300W 300D||30||6.0||240, 50Hz||290H 210W 410D||2 x 3-pin power socket|
Note: Recommended staff numbers are based upon pouring 200 ml cups without interruption.
What's in the Box
|Box 1||Box 2|
Product Code: EB WP30
The Twin Lever Tap dispenses both boiling and chilled water from the same tap.
Product Code: UBFKI 10B
Inline underbench kit with EBOKDF - 1 micron Omnipure GAC Carbon inline cartridge.
Product Code: EB 300
Connects to PLV on Ecoboil under bench combo units.
Product Code: EB 400
For connection points on Ecoboil under bench chiller units and under bench filters.
Product Code: EB 809
Heavy duty electronic power timer, can be programmed for required use 24/7.
Product Code: EB 801
The IntelliSwitch saves you money by switching the power off outside business hours.
Our warranty starts from the date of installation; five years on the storage body, one year for parts/tapware and labour.
Full WarrantyRead our full warranty here
